Heat Pump Noodle Dryer: A Green Revolution Reshaping the Noodle Drying Process

In the traditional noodle processing industry, the drying stage has always been a critical factor determining product quality and production costs. For a long time, coal-fired, gas-fired, or electric heating tube drying equipment have dominated the market. However, issues such as high energy consumption, imprecise temperature and humidity control, and unstable product quality have persistently troubled producers. Today, the emergence of the heat pump noodle dryer is bringing a green revolution to the field of noodle drying with its disruptive technological advantages.

1. Working Principle of Heat Pump Drying: An Efficient and Energy-Saving Closed-Loop System

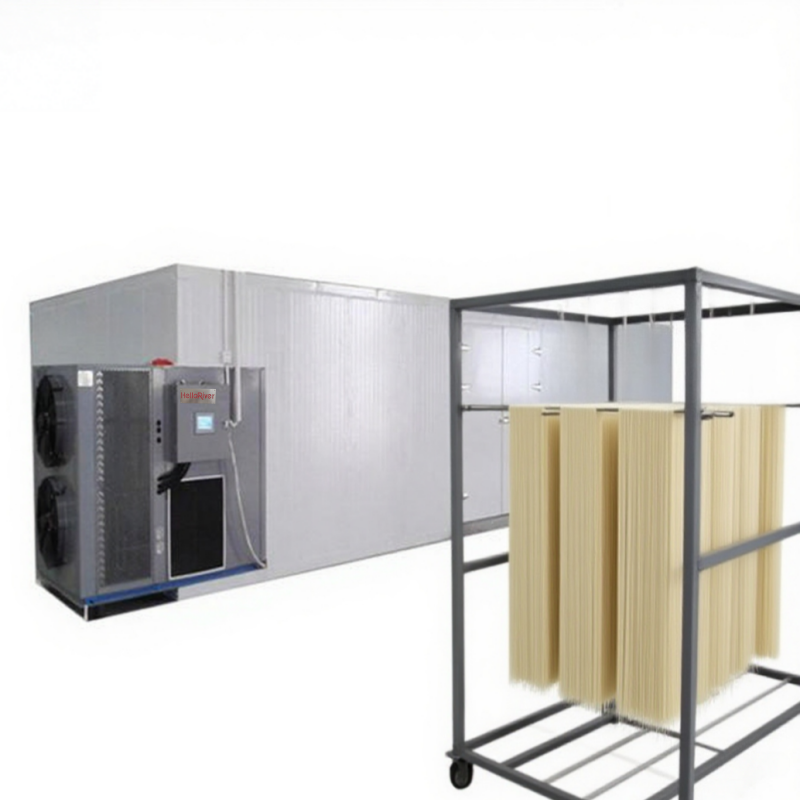

The Hello River heat pump noodle dryer is not simply "heating plus blowing air." Instead, it is an intelligent temperature and humidity control system based on the reverse Carnot cycle principle. It uses a compressor to drive refrigerant circulation, absorbing low-grade heat from the environment and compressing it into high-grade heat to dry the air. At the same time, the moist hot air passes through an evaporator where moisture condenses and is discharged outside, while the dry air is reheated and recirculated.

Unlike traditional open-type dehumidification, the heat pump system achieves a fully enclosed cycle—heat is essentially not lost. It requires only a small amount of electrical energy to transfer 3–4 times the thermal energy, achieving a comprehensive energy efficiency ratio (COP) of 3.0–4.5. This saves 60%–75% of energy compared to electric heating tube dryers and over 30% compared to coal-fired systems.

2. Core Advantages: Redefining Noodle Drying Standards

2.1 Precise Temperature and Humidity Control for Superior Noodle Quality

Traditional drying methods often lead to problems such as "dry exterior but wet interior," surface cracks, spoilage, or brittle noodles. The Hello River heat pump dryer allows segmented settings for temperature (typically adjustable from 35°C to 65°C) and humidity (10%–90%). It precisely simulates natural drying and tempering processes, ensuring uniform moisture loss from the surface to the core. The finished noodles have a chewy texture, bright appearance, good rehydration properties, and a breakage rate reduced by over 80%.

2.2 Clean and Eco-Friendly with Zero Pollutant Emissions

Heat pump drying involves no combustion and produces no exhaust gases or solid waste. For food products with strict hygiene requirements, such as dried noodles and fresh wet noodles, the enclosed drying environment isolates external dust, insects, and microbial contamination, easily meeting food safety and hygiene standards.

2.3 Significantly Reduced Operating Costs

Take a production line with a daily output of 1 ton of noodles as an example: traditional electric heating tube dryers consume about 500–600 kWh per ton, whereas a heat pump system requires only 150–200 kWh. Compared to coal-fired boilers, it also eliminates the need for boiler operators, slag disposal, and environmental protection equipment. Most users report a payback period of 1 to 1.5 years.

2.4 Intelligent Control, Reducing Labor Dependency

Modern heat pump dryers are equipped with a PLC touchscreen control system, pre-programmed with over a dozen drying curves for noodles, rice noodles, river rice noodles, and more. Operators simply press start, and the device automatically performs heating, temperature holding, dehumidification, cooling, and other procedures. Remote monitoring via mobile APP, fault alerts, and automatic shutdown enable unattended operation.

2.5 Adaptable to All Climates

The heat pump system is unaffected by low outdoor temperatures or rainy weather. During the rainy season in southern China or cold winters in the north, traditional sun drying or simple drying rooms are nearly impossible to use. In contrast, the heat pump dryer consistently produces high-quality noodles, ensuring year-round production capacity and quality.

3. Typical Application Scenarios and Case Studies

Small to medium-sized dried noodle workshops: Using an integrated heat pump drying room occupying only 15–20 m², a single batch of 500 kg of dried noodles has its drying cycle shortened from 12 hours (traditional) to 7–8 hours, with the defect rate dropping from 12% to below 3%.

Specialty fresh noodles and semi-dried noodles: For semi-dried noodles with a moisture content of 32%–38%, low-temperature drying (40°C–50°C) preserves the gluten network structure to the greatest extent, extending the shelf life from 3 days at room temperature to over 60 days without the need for cold chain transportation.

4. Return on Investment and Policy Incentives

Although the initial cost of a heat pump dryer is slightly higher than traditional equipment (about 30%–50% higher), the comprehensive benefits are exceptional due to annual energy savings of tens of thousands of yuan, quality improvements that command premium prices, and a long equipment lifespan of 10–15 years (heat pump main units are designed to last over 12 years).

At the same time, national and many local governments have explicitly included air-source heat pump drying in the "Green Technology Promotion Catalog" and agricultural machinery purchase subsidy programs. Some regions offer equipment subsidies of 30%–50% for coal-to-electricity drying projects or electricity price reductions of RMB 0.2–0.3 per kWh, further shortening the payback period.

5. From "High Energy Consumption and Low Efficiency" to "Intelligent and Lean Production"

The heat pump noodle dryer is more than just drying equipment—it is a strategic tool for the noodle processing industry to achieve a four-in-one upgrade: cost reduction, quality improvement, regulatory compliance, and green operations. In the era of dual carbon goals and increasing consumer demands for food safety and taste, being the first to adopt heat pump drying technology means seizing the high ground in both quality and cost competitiveness.

If you are struggling with unstable noodle drying, persistently high electricity bills, or environmental compliance pressures, we invite you to learn more about the Hello River heat pump drying solution—ensuring every strand of noodle is dried to perfection.

(For more technical parameters, case study videos, and a free energy savings estimate, please contact our engineering team for a customized solution.)
